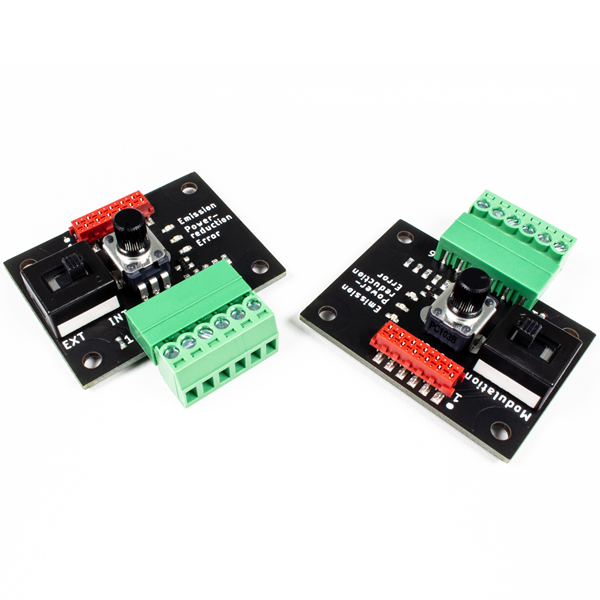

ColorDRIVE Control Box PCB
Control PCB for the ColorDRIVE's own ColorBUS system.
Can be used with ColorDRIVE one and ColorDRIVE 6 (one modulation channel only).
Can be used to manually set modulation voltage via potentiometer or external signal (depending on switch state).
Displays state of interlock, power reduction and ColorDRIVE sensor error.
Features a screw cage clamp connector for external interlock and modulation signal (interlock modes include: line break, line make and "to ground"-mode).
- 15cm flat ribbon cable
- interlock bridging cable
1x 6pin Screw Cage Clamp Connector
12pin, ColorBUS connector
|Control options||Potentiometer for modulation, switch to choose between on-board modulation and external signal|
|Mounting||4x M3 screws|
|Dimensions||46mm x 35mm|
Article in Shop
Control PCB for easy manual control of any ColorDRIVE with option for external signal input.
35,00 €(MwSt. excl.)
